Suitable for Sachet Drinking Water, Pasteurized Milk, Soymilk, Peanut Milk, Fruit Juice, Iced Drinks, Soft Beverages, Soy Sauce, Edible Vinegar, Rice Wine
- Liquid Seasonings & Other Flowable Liquids
- Full-Automatic Single-Machine Design
- Food-Grade Hygiene Standard
- High Adaptability for Emerging Markets
Product Overview

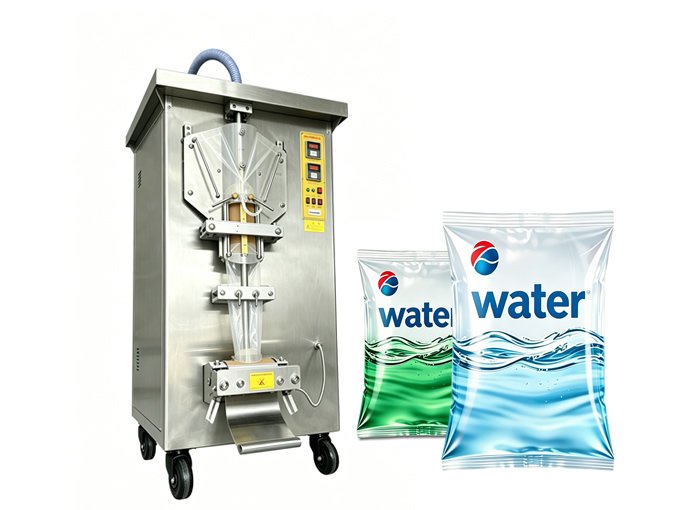

The ZL series sachet filling and sealing machine is a mature all-in-one liquid packaging equipment, designed for small and medium-sized drinking water plants, beverage workshops and food processing factories. This series adopts a unified appearance and frame design, and is available in two configurations: ZL-SF-2000 standard type and ZL-SF-3000 high-speed type, which can independently complete the whole packaging process including bag forming, quantitative filling, four-side heat sealing, date printing and finished product cutting without additional auxiliary equipment.
All parts in contact with liquid and the machine exterior are made of high-quality food-grade stainless steel, complying with food production sanitation standards. It is compatible with single-layer, double-layer and three-layer PE packaging films, and the filling volume can be flexibly adjusted within the range of 70–500ml. With long-tested stable technology, this series has passed authoritative quality appraisal, with all performance indicators reaching the advanced level of similar products. It has been deployed by more than 10,000 users worldwide, featuring simple operation, low failure rate and ≥99% product qualification rate. It is especially suitable for sachet water production scenarios in Africa, Southeast Asia and other emerging markets, and can also be widely used for packaging of various liquid products such as juice, dairy drinks and condiments.
Equipment Features
- Food-grade hygienic structure: All liquid-contacting components and machine shell adopt high-quality stainless steel, with four-side sealing design, fully meeting food safety and sanitation specifications.
- Fully automatic integrated operation: Integrates automatic film feeding, pattern alignment, bag forming, quantitative filling, heat sealing, date coding and cutting into one unit, realizing unmanned continuous production.
- High-precision filling system: Equipped with stable quantitative filling mechanism with high filling accuracy, no dripping or overflow, ensuring consistent weight of each finished sachet.
- Intelligent cursor positioning: Automatic pattern correction and film feeding length control, guaranteeing neat and uniform packaging patterns and high finished product consistency.
- Multiple safety protections: Built-in automatic alarm functions for film shortage, film breakage and overload, effectively reducing material waste and equipment failure risks.
- Strong production adaptability: Compatible with various specifications of PE packaging films; filling volume can be adjusted steplessly within 70–500ml to adapt to different product packaging requirements.
- Low operation and maintenance cost: Mature and reliable technology with low failure rate; simple structure for convenient daily maintenance, no requirement for professional operators.
- Compact skid-mounted design: Unified integrated frame with small footprint, easy for installation, transportation and workshop layout.
Technical Parameters
| Items | ZL-SF-1500 (Economical Type) | ZL-SF-2000 (Standard Type) | ZL-SF-3000 (High-Speed Type) |
|---|---|---|---|
| Rated Production Capacity | 1500 sachets/hour | 2000 sachets/hour | 3000 sachets/hour |
| Adjustable Speed Range | 1200–1500 sachets/hour | 1500–2000 sachets/hour | 2500–3000 sachets/hour |
| Filling Volume Range | 70–500 ml (stepless adjustment) | 70–500 ml (stepless adjustment) | 70–500 ml (stepless adjustment) |
| Applicable Film Width | 160–320 mm | 160–320 mm | 160–320 mm |
| Sealing Form | Four-side heat sealing | Four-side heat sealing | Four-side heat sealing |
| Compatible Packaging Material | Single / double / triple layer PE film | Single / double / triple layer PE film | Single / double / triple layer PE film |
| Power Supply | 220V / 380V, 50Hz | 220V / 380V, 50Hz | 220V / 380V, 50Hz |
| Total Installed Power | 1.2 KW | 1.5 KW | 1.8 KW |
| Machine Weight | ~450 kg | ~520 kg | ~580 kg |
| Overall Dimensions | 1000×900×1950 mm | 1050×950×2000 mm | 1050×950×2050 mm |
| Product Qualification Rate | ≥99% | ≥99% | ≥99% |
Application Fields
Drinking Water Industry
- Pure water and mineral water sachet production for emerging markets such as Africa and Southeast Asia
- Distribution packaging for small water plants and water stations
- Portable drinking water packaging for outdoor, public welfare and disaster relief scenarios
Beverage & Dairy Industry
- Pouch packaging of fruit juice, iced drinks and tea beverages
- Packaging of milk, soymilk, peanut milk and other plant protein drinks
- Small package of yellow rice wine, fruit wine and low-alcohol beverages
Food Condiment Industry
- Packaging of soy sauce, vinegar, cooking wine and other liquid condiments
- Small-bag packaging of liquid seasonings, soup bases and edible oil
Other Fields
- Small-package packaging of daily chemical liquids and cosmetic lotions
- Packaging of medical disinfectant and agricultural liquid reagents
