YDGF & YRGF Series Can Filling & Seaming Monoblock Machine

Product Overview

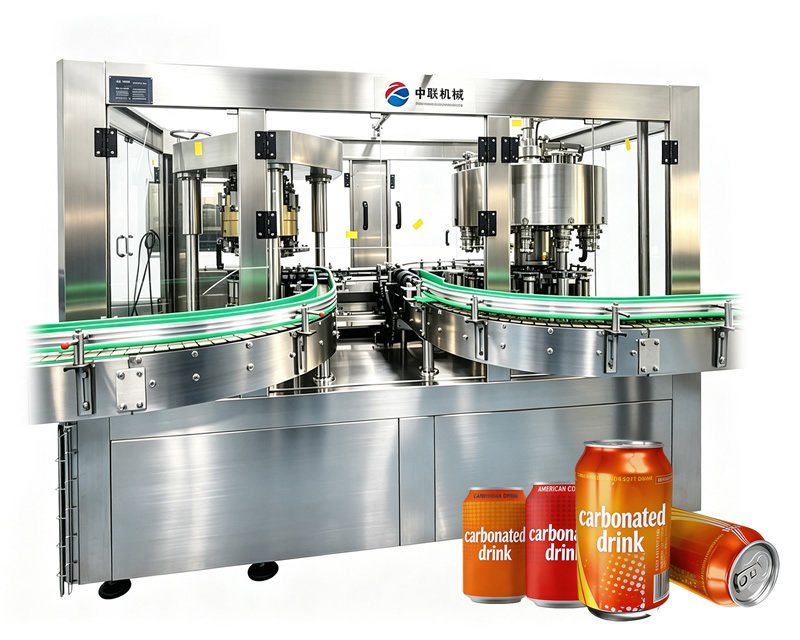

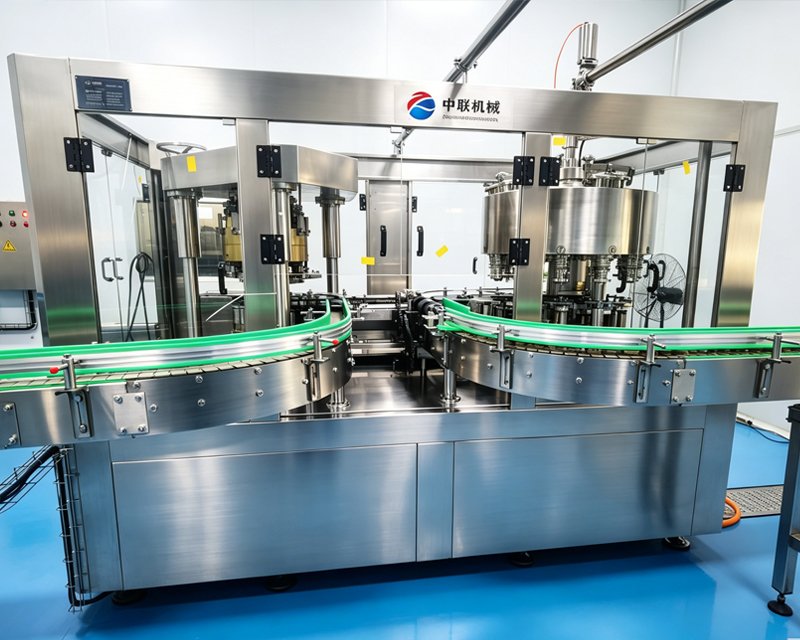

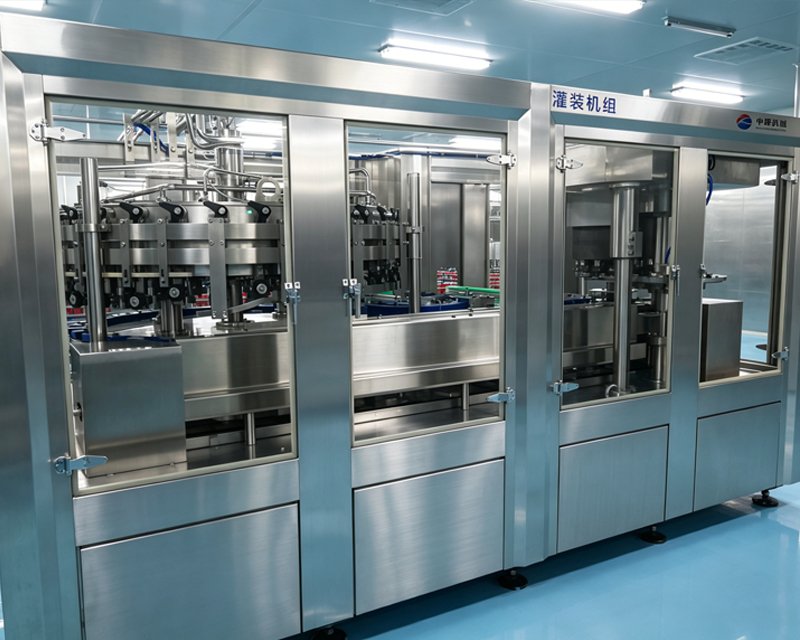

The ZOOLINKED YDGF & YRGF series can filling and seaming monoblock machine is a professional rotary filling system that combines filling and sealing processes into one integrated unit. This 2-in-1 design eliminates intermediate conveying links, reduces production floor space requirements, and significantly lowers the risk of secondary contamination. The machine is available in two specialized configurations: the YDGF series for aluminum cans with isobaric filling technology suitable for carbonated beverages, and the YRGF series for tinplate cans with atmospheric gravity filling for non-carbonated hot-fill products.

Equipment Principle

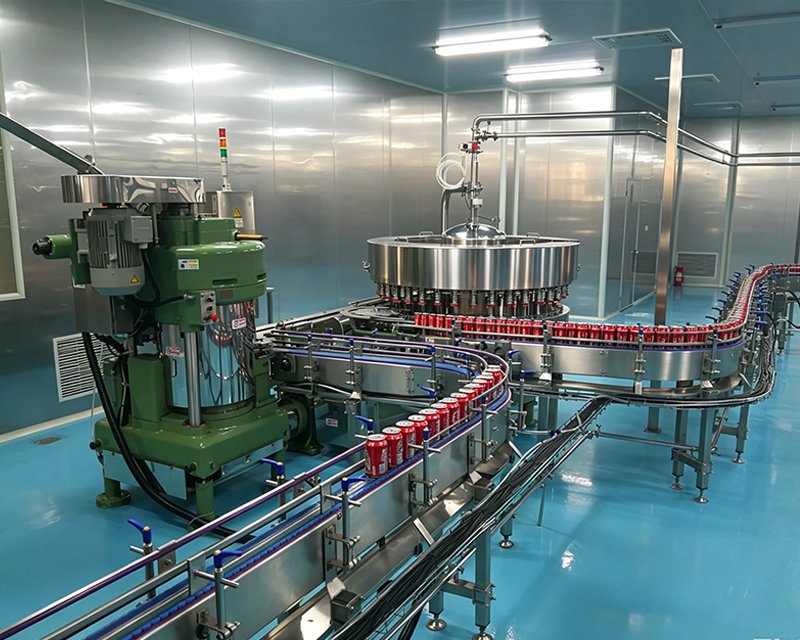

The machine operates on a rotary continuous working principle, driven by precision gear transmission and cam indexing mechanisms to achieve perfectly synchronized operation of all stations. Empty cans are fed into the machine via the infeed screw and star wheel system, which accurately positions each can for transfer to the filling turret.

For the YDGF aluminum can series, isobaric filling technology is applied: the filling chamber maintains identical pressure to the inside of the can, allowing carbonated liquid to fill under constant pressure conditions that prevent CO₂ loss and foaming, ensuring stable gas content throughout production. For the YRGF tinplate can series, atmospheric gravity filling is adopted, suitable for normal or high-temperature filling of non-carbonated liquids with precise liquid level control guaranteeing consistent filling volume across all products.

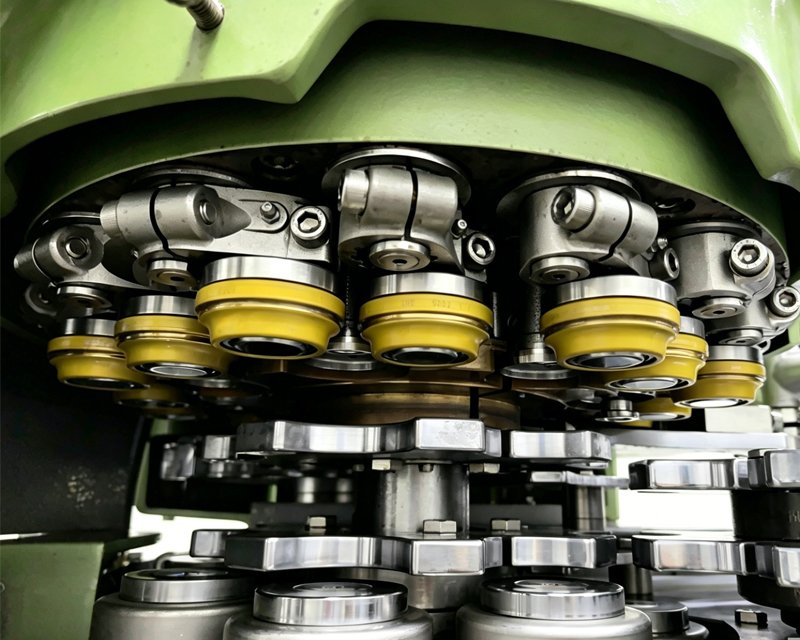

After filling, cans are transferred to the seaming station via the rotary star wheel. The seaming head completes double-roll seaming to tightly seal the can body and lid, ensuring leak-proof and airtight sealing that extends product shelf life. Finished cans are finally discharged to the downstream conveyor through the outfeed star wheel.

Equipment Features

• 2-in-1 Integrated Design: Filling and seaming processes integrated in one compact unit, reducing intermediate conveying links, floor space requirements, and secondary pollution risk.
• Dual Process Options: YDGF series for isobaric carbonated filling, YRGF series for atmospheric hot filling, covering both carbonated and non-carbonated canned beverage production needs.
• Food-Grade Hygienic Construction: All product-contact parts manufactured from 304 food-grade stainless steel with smooth polished surfaces, no sanitary dead corners, fully compliant with international food safety standards.
• High Filling Precision: Precision-engineered filling valves with stable liquid level control ensure uniform filling volume within ±1% tolerance and effectively reduce material loss.
• Wide Can Compatibility: Adaptable to standard can sizes of 200/202/206/209 diameters, suitable for various aluminum cans and tinplate cans available on the market.
• PLC Automatic Control: Equipped with industrial PLC control system and color touch screen interface, supporting production counting, speed adjustment, fault alarm, and real-time status monitoring functions.
• Stable Seaming Quality: Double-roll seaming structure ensures consistent sealing tightness, flat and wrinkle-free seamed edges, meeting the highest food packaging sealing requirements.
• Variable Frequency Speed Regulation: VFD control system allows flexible adjustment of production speed to match different product formulas and production demand levels.
• Multiple Safety Protections: Built-in no-can no-fill logic, overload protection, emergency stop device, and full safety enclosure to ensure equipment operation and personnel safety.
• Easy Operation & Maintenance: Modular structure enables quick replacement of wearing parts and convenient daily cleaning, resulting in low long-term operation and maintenance costs.

Technical Specifications

YDGF Series – Aluminum Can (Carbonated Beverage)

• Available models: YDGF12-1, YDGF18-4, YDGF24-6, YDGF36-6
• Production capacity: 2,000 – 15,000 cans per hour
• Filling valves: 12 – 36 pieces
• Seaming heads: 1 – 6 pieces
• Can size: 200/202/206/209 standard diameters
• Filling pressure: Isobaric
• Filling temperature: 0 – 5°C
• Total power: 2.2 – 7.5 KW
• Weight: 1,800 – 5,500 kg

YRGF Series – Tinplate Can (Non-carbonated Beverage)

• Available models: YRGF12-1, YRGF18-4, YRGF24-6, YRGF36-6
• Production capacity: 3,000 – 18,000 cans per hour
• Filling valves: 12 – 36 pieces
• Seaming heads: 1 – 6 pieces
• Can size: 200/202/206/209 standard diameters
• Filling pressure: Atmospheric gravity
• Filling temperature: 65 – 95°C
• Total power: 2.2 – 7.5 KW
• Weight: 1,800 – 5,500 kg

Application Fields

Carbonated Beverage (Aluminum Can) Applications

• Carbonated soft drinks, sparkling water, and soda water production
• Canned beer, craft beer, and fruit-flavored beer filling lines
• Sparkling juice, energy drinks, and carbonated functional beverage production
• Canned sparkling wine and low-alcohol carbonated beverage manufacturing

Non-carbonated Beverage (Tinplate Can) Applications

• Canned fruit juice, concentrated juice, and blended juice beverage production
• Plant protein drinks, milk beverages, and dairy drink filling lines
• Herbal tea, black tea, green tea, and other tea beverage manufacturing
• Canned porridge, eight-treasure porridge, and grain beverage production
• Canned condiments, plant extracts, and health tonic filling solutions
