ZL-LPJ Series fully automatic bottle sorting machine (unscrambler) orients round, flat and PET square bottles from 28–125mm at 8,000–24,000 bottles/hour. Stainless-steel PLC-controlled unit with bottle-jam alarm and quick changeover for beverage, food, pharma and daily-chemical lines.

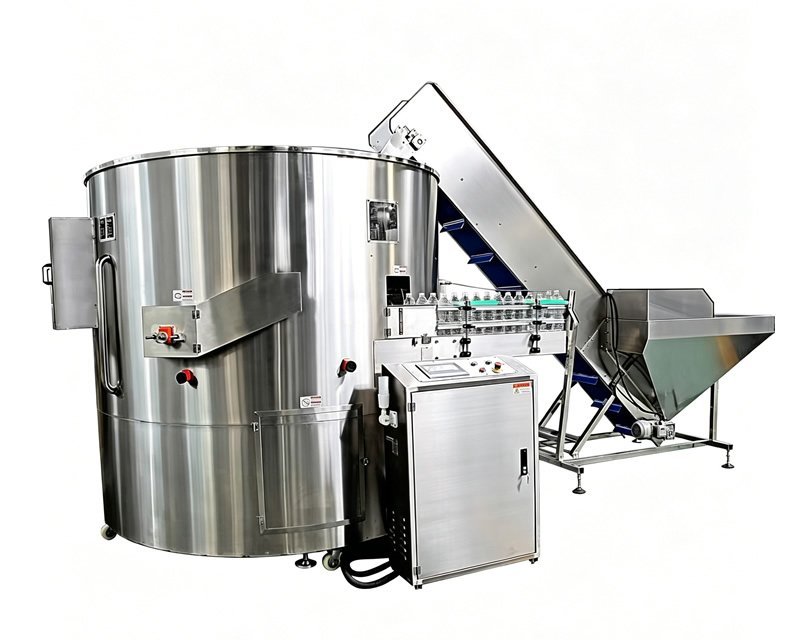

The ZL-LPJ Series fully automatic bottle sorting machine (bottle unscrambler) is engineered to bring order to chaos on high-speed bottling lines. It automatically orients and lines up round, flat and PET square containers for food, beverage, pharmaceutical and daily-chemical producers, and slots neatly into turnkey packaged water and beverage lines shipped to Central Asia, Africa, Southeast Asia and South America.
Overview
The main body is fabricated from high-quality stainless steel, while other contact parts use non-toxic, hard-wearing materials. Electrical and pneumatic systems feature selected imported components, and the complete cycle runs under PLC control for low failure rates and dependable operation shift after shift.
Downstream integration is effortless: unscrambled bottles feed straight onto an air conveyor or chain conveyor. Both conveying modes carry a bottle-jam alarm – the machine halts automatically when triggered and resumes on its own once the blockage clears, keeping the line running with minimal supervision.
Wide compatibility and strong adaptability let a single machine handle multiple bottle types, trimming equipment investment. A bottle-dialing height-adjustment assembly makes changeover a matter of simple vertical adjustment, and an optional automatic main-unit lift can match the air-conveyor height for different bottle specifications.
Key Features
- Broad bottle range – handles round, flat and PET square bottles from 28mm to 125mm diameter; one machine covers many specs and lowers capital outlay.
- Fully automatic PLC control – the entire process runs on a stable PLC program with bottle-jam alarm and automatic start-stop protection for safe, continuous output.
- Food-grade hygiene – stainless-steel body and non-toxic contact parts meet food and pharmaceutical hygiene standards.
- Flexible line integration – the outlet connects directly to air or chain-plate conveyors, adapting to different layouts.
- Quick changeover – the built-in bottle-dialing height assembly enables fast bottle-type changes; optional auto-lift matches varied conveyor heights.
- Scalable capacity – multiple models spanning 8,000 to 24,000 bottles per hour cover small to large operations.
How It Works
Empty bottles are lifted into the rotating turntable of the sorting head by the inclined elevator. As the turret spins, bottle-dialing and positioning mechanisms guide the jumbled bottles into a single, uniformly oriented and neatly arranged stream.
The oriented bottles pass through the outlet conveying system onto the downstream air or chain conveyor and into filling and other processes. The PLC monitors the run in real time; on detecting a jam or fault it alarms and stops, then restarts automatically once cleared – delivering truly unmanned bottle sorting.
Technical Parameters
Note: some model names and dimensions were obscured by text overlay in the original datasheet; values above are compiled for reference only. Specifications are subject to change due to continuous R&D improvement.
Applications
- Food & beverage: automatic sorting of PET and plastic bottles for beverage, condiment and food lines
- Pharmaceutical: unscrambling of medical bottles, infusion bottles and drug packaging containers
- Daily chemical: orientation of plastic bottles for toiletries and cosmetics
- Other light industries: sorting of assorted round, flat and square plastic or glass bottles
Get a Quote
Feed your fillers without bottlenecks. Combine the ZL-LPJ unscrambler with a full packaged drinking water production line from ZL Machinery for a smooth, high-capacity turnkey line tailored to your bottle formats.
