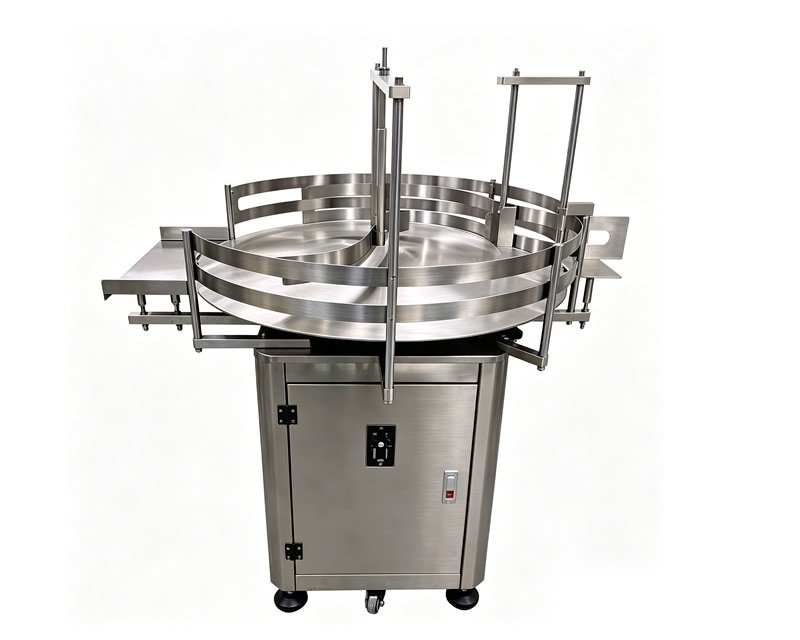

ZL-GP Series semi-automatic rotary bottle feeder for round and square plastic or glass bottles. Stainless-steel turntable with stepless 30–200 bottles/min feeding, doubling as a mid-line buffer for labeling, filling and capping in beverage, food and daily-chemical lines.
The ZL-GP Series semi-automatic rotary bottle feeder is a food-grade workhorse built by ZL Machinery to keep beverage, juice and water lines flowing. Reliable, hygienic and easy to drop into an existing layout, it forms part of complete turnkey beverage production solutions delivered to Central Asia, Africa, Southeast Asia and South America.
Overview
Its stainless-steel body resists rust, lasts for years and wipes clean in seconds. The feeder handles a broad mix of round plastic and glass bottles, and copes with square bottles too, delivering fast, orderly bottle alignment across many applications.
Designed to auto-convey round and square bottles, it connects directly to the conveyors of labeling, filling and capping machines to feed bottles continuously and lift output. Installed mid-line, it doubles as a buffer platform that shortens the total conveyor run.
Bottle size is freely adjustable, and conveying speed spans 30 to 200 bottles per minute with stepless regulation – making it easy to balance the rhythm of the whole line.
Key Features
- Durable stainless steel – rust-proof, sturdy body with a smooth, easy-to-sanitize surface meeting food and pharma hygiene needs.
- Wide compatibility – suits round and square plastic or glass bottles; diameter and height adjust freely for varied specs.
- Stepless speed – 30 to 200 bottles per minute, matched flexibly to upstream and downstream equipment.
- Feeder plus buffer – serves as an automatic feeder for labeling, filling and capping, and as a mid-line buffer that trims conveyor length.
- Simple & low-maintenance – compact rotary turntable with easy operation, low failure rate and caster wheels for flexible placement.
- Steady delivery – the turntable arranges bottles neatly and feeds them smoothly, cutting manual sorting and boosting efficiency.
How It Works
Operators load empty bottles onto the rotating turntable by hand. Driven by the motor, the turntable turns at a constant speed while an adjustable guide mechanism marshals the disordered bottles into an orderly stream that exits onto the outlet conveyor and into labeling, filling or capping machines downstream.
Adjusting the guide components adapts the feeder to different bottle sizes, and changing the turntable speed tunes the feed rate to match line capacity. Positioned mid-line, it buffers the speed gap between upstream and downstream stages to keep the line balanced.
Technical Parameters
Data is for reference only. Specifications can be customized according to actual production requirements.
Applications
- Food & beverage: bottle feeding for bottled drinks, condiments, canned food and other food packaging lines
- Pharmaceutical: conveying of medicine and health-product bottles
- Daily chemical: feeding of cosmetic and toiletry bottles
- Other sectors: semi-automatic feeding and buffering for assorted round and square bottled products
Get a Quote
Need steady bottle supply to your fillers and cappers? The ZL-GP feeder integrates seamlessly into a complete packaged drinking water production line from ZL Machinery – contact us for a layout matched to your line speed.
