Direct-expansion milk cooling tank with honeycomb Miller-plate evaporator and imported compressor. SUS304/SUS316 build and PU insulation for fast, reliable raw-milk cooling at farms, collection stations and dairies.

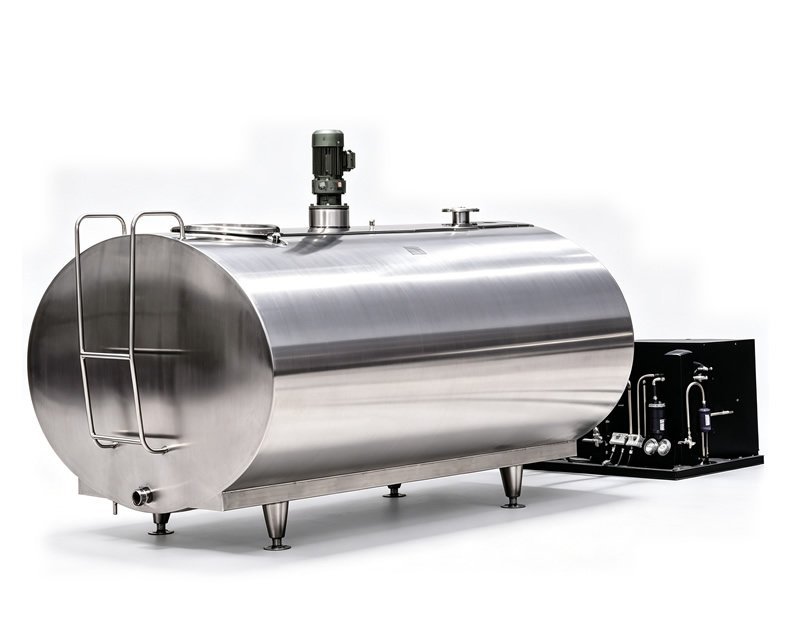

Fresh raw milk must be chilled quickly to preserve quality, and the ZLG Series direct cooling milk tank is built exactly for that. Using a honeycomb Miller-plate evaporator integrated into the tank wall, it cools milk rapidly and holds it at a stable low temperature — an essential piece of equipment for pastures, milk collection stations and dairy processing lines.
Key Features
- High-efficiency direct cooling: honeycomb Miller-plate evaporator on the tank wall exchanges heat directly for fast chilling.
- Imported refrigeration: fully hermetic compressor units (France Tecumseh or Maneurop) for reliable, efficient cooling.
- Food-grade hygienic build: SUS304 or SUS316 body with a pressurised automatic rotary spray CIP system.
- Strong insulation: polyurethane foam layer minimises cold loss and holds temperature.
Technical Parameters
| Model | Volume (L) | Overall Dimensions (mm) | Motor Power (KW) | Cooling Capacity (W) | Weight (kg) |
|---|---|---|---|---|---|
| ZLG-500 | 500 | 1750×1150×1300 | 3.6 | 7380 | 242 |
| ZLG-1 | 1000 | 1950×1350×1450 | 4.4 | 9280 | 385 |
| ZLG-2 | 2000 | 3950×1550×1750 | 6.7 | 15820 | 460 |
| ZLG-3 | 3000 | 3500×1650×1850 | 9 | 19534 | 645 |
| ZLG-5 | 5000 | 4000×2050×2150 | 13.6 | 31640 | 1150 |
| ZLG-8 | 8000 | 4700×2300×2400 | 19.6 | 47460 | 1450 |
Data is for reference only. Specifications may change without prior notice due to continuous R&D improvement.
Applications
- Pastures & farms: cooling and temporary storage of fresh raw milk
- Milk collection stations: raw-milk collection, cooling and holding
- Dairy plants: raw-milk receiving, cooling and pre-storage
- Other: low-temperature storage of liquids needing constant cold preservation
