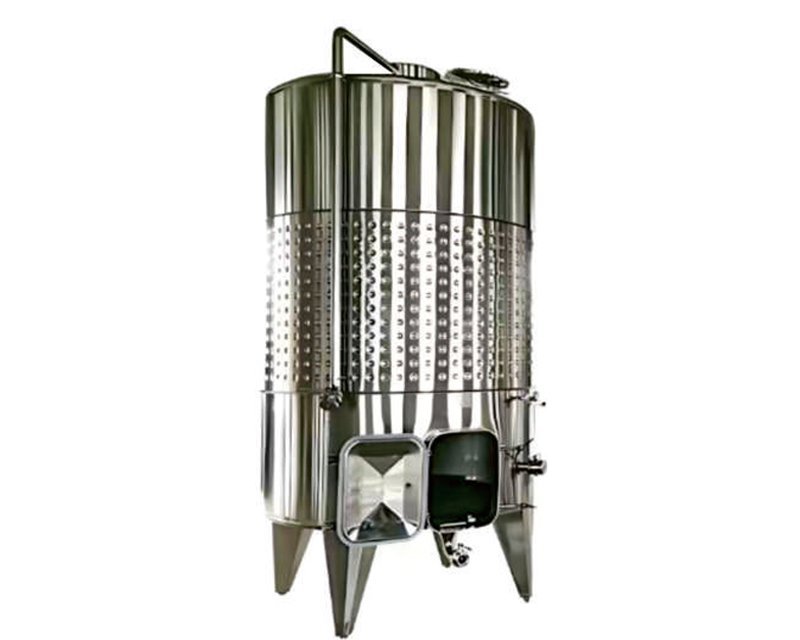

Food-grade jacketed tank with Miller, dimple or coil jacket for heating and cooling. SUS304/SUS316L build, optimised heat transfer and sanitary fittings for dairy, beverage and fermentation processes.
The JG Series jacketed tank goes beyond storage — its heat-transfer jacket lets you heat, cool or hold product at a precise temperature. Available with Miller-plate, dimple or coil jackets, it serves as a batching, aging, sterilisation or temperature-controlled fermentation vessel in dairy, beverage and food plants across emerging markets.
Construction & Heat Transfer
- Material: inner tank in SUS304-2B or SUS316L stainless steel; jacket 1.5mm with insulated outer layer.
- Structure: cylindrical body with conical bottom on stable support legs; three jacket types available.
- Efficient heat exchange: a medium-diversion design prevents short-circuiting of the heating/cooling medium, improving efficiency and temperature uniformity.
Standard Fittings
- Closed manhole and insect-proof breathable air cap
- PT100 digital thermometer, CIP cleaning ball and pressure gauge
- Material inlet/outlet and heating/cooling medium inlet/outlet ports
- Sampling valve and adjustable support legs
Technical Parameters
| Model | Effective Volume (L) | Diameter (mm) | Total Height (mm) | PU Insulation Thickness (mm) | Jacket Thickness (mm) | Inlet/Outlet Diameter (mm) |
|---|---|---|---|---|---|---|
| JG-600 | 600 | 850 | 1950 | 50 | 1.5 | φ38 / φ51 |
| JG-1 | 1000 | 1050 | 1970 | 50 | 1.5 | φ38 / φ51 |
| JG-1.5 | 1500 | 1180 | 2450 | 50 | 1.5 | φ38 / φ51 |
| JG-2 | 2000 | 1340 | 2450 | 50 | 1.5 | φ38 / φ51 |
| JG-3 | 3000 | 1540 | 2450 | 50 | 1.5 | φ38 / φ51 |
| JG-4 | 4000 | 1650 | 2950 | 50 | 1.5 | φ38 / φ51 |
| JG-5 | 5000 | 1780 | 2950 | 50 | 1.5 | φ38 / φ51 |
| JG-6 | 6000 | 1900 | 2950 | 50 | 1.5 | φ38 / φ51 |
| JG-8 | 8000 | 2060 | 3350 | 60 | 1.5 | φ65 / φ51 |
| JG-10 | 10000 | 2300 | 3390 | 60 | 1.5 | φ65 / φ51 |
| JG-12 | 12000 | 2520 | 3950 | 60 | 1.5 | φ65 / φ51 |
| JG-15 | 15000 | 2540 | 3950 | 60 | 1.5 | φ65 / φ51 |
Data is for reference only. Specifications may change without prior notice due to continuous R&D improvement.
Applications
- Dairy: batching, aging, cream storage and sterilisation tanks
- Beverage: heating, cooling and blending of juice, syrup and tea extract
- Brewing & fermentation: temperature-controlled fermentation and storage
- Food & pharmaceutical: temperature-controlled reaction and holding of liquids and culture media
Need a jacketed tank for heating, cooling or fermentation? We build complete packaged drinking water and beverage production lines with tanks, treatment, filling and packaging fully integrated.
