Fully automatic unmanned L-type sealing and heat-shrink wrapping machine for POF, PVC and PE films, with ZL-450 / ZL-550 / ZL-650 models handling packages up to 650×550×250 mm for high-volume food, beverage and packaging lines.

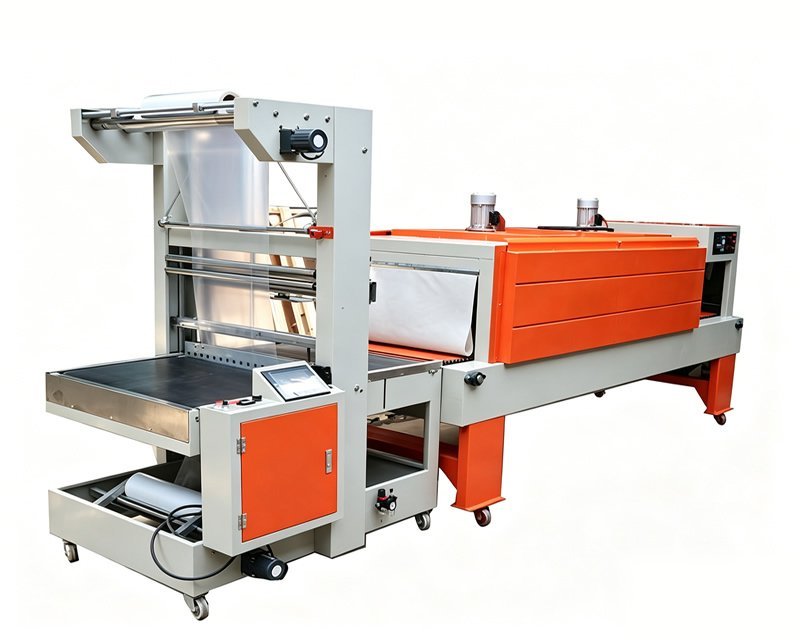

The Zhonglian ZL Series is a fully automatic, unmanned L-type sealing and heat-shrink wrapping machine for high-volume packaging. Refined over a decade of R&D and built with imported key components, it delivers dependable, cost-effective shrink wrapping for beverage, food and general manufacturing plants across Central Asia, Africa, Southeast Asia and South America.
Overview
Developed through more than ten years of dedicated R&D, the machine absorbs advanced techniques from Japanese, German and Italian peers and uses imported core components, electrical elements and pneumatic parts for reliable, durable performance.
As a fully automatic unmanned L-type sealer, it suits high-efficiency mass-production lines: film feeding with perforation, film sleeving and seal-cutting all run automatically. Operators only adjust the film guide and infeed platform to suit different product widths and heights.
Sealing and heat-shrinking run continuously and automatically, cutting labour cost while keeping packaging quality reliable — an economical, durable solution for a range of heat-shrink films.
Key Features
High-Grade Technology, Imported Components
More than ten years of accumulated know-how, absorbed advanced technology from Japanese, German and Italian peers, and imported premium core, electrical and pneumatic parts ensure stable, durable long-term operation.
Fully Automatic L-Type Sealing & Cutting
- Unmanned automatic operation, ideal for continuous high-efficiency mass production.
- Automatic film feeding with perforation, plus automatic film sleeving, sealing and cutting.
- Only the film guide and infeed platform need manual adjustment to fit different product widths and heights.
High-Efficiency Sealing & Shrinking
- Imported photoelectric sensors — one horizontal, one vertical — switch flexibly to seal thin, small packages with ease.
- Automatic feeding, with package length set by photoelectric sensor and timer; an induction motor rewinds waste film automatically.
- Simple changeovers when package size changes — no need to swap molds or bag formers.
- Supports combined packaging of differently sized products for promotional bundles.
- Continuous automatic seal-cutting and heat-shrinking give stable, high-efficiency, widely applicable performance.
- Excellent value, economical and durable, suited to POF, PVC and other heat-shrink films.
Premium Packaging, Multiple Benefits
- Sealed, shrink-wrapped products look more attractive, with moisture-proof, corrosion-resistant and impact-protective film.
- Ideal for tight multi-item wrapping and tray packaging, and easily matched with automatic packaging lines.
Safe Operation, Low Failure Rate
- Precise, durable mechanical parts and rigorous structure give vibration-free, stable running.
- The sealing blade uses US DuPont Teflon-coated, non-stick, heat-resistant aluminium alloy — no cracking, coking or smoke, for zero pollution.
- An automatic protection function on the sealing cutter prevents accidental cutting of packaged products.
- Tens of thousands of component aging tests keep every detail stable, with extremely low failure rate.
- The sealing section has an acrylic protective cover and automatic alarm for greater operator safety.
Wide Industry Application
These strengths have seen this automatic L-type PE film shrink wrapping machine deployed reliably and efficiently at well-known companies worldwide across food, software, pharmaceutical, beverage, tobacco, daily chemical, automotive, cable, cosmetic and electronics industries.
How It Works
Products feed onto the infeed conveyor into the sealing station, where the photoelectric sensor reads position and size and the system sets the packaging length automatically.
The film mechanism delivers shrink film and perforates it automatically. The L-type blade seals and cuts the film to fully wrap the product, which then moves into the heat-shrink tunnel.
Inside the tunnel, evenly circulated hot air shrinks the film tightly onto the product. After cooling, the finished pack exits the outlet while the induction motor rewinds waste film — a continuous, automatic cycle with consistent quality.
Technical Parameters
Data is for reference only. Specifications can be fully customized to actual production requirements and may change without prior notice.
Applications
- Food: shrink wrapping of boxed, canned, snack and instant foods and condiments
- Beverage: combined packaging of bottled water, juice, tea and dairy products
- Pharmaceutical: shrink wrapping of medicine boxes, bottles and hygiene-sensitive products
- Daily chemical & cosmetic: packaging of cosmetic sets, toiletries and cleaning products
- Electronics & hardware: wrapping of electronics, hardware, auto parts and cable products
- Other industries: bundling and promotional packaging in tobacco, printing, stationery and more
Looking to build a complete bottling plant? Zhonglian Machinery supplies this unit as part of a full packaged drinking water production line, from water treatment to end-of-line packaging. Contact our engineers for a tailored turnkey quotation.
