Continuous-Operation Parallel Filtration System
ZOOLINKED sanitary duplex basket filter is professional liquid filtration equipment designed for uninterrupted food processing production. Featuring parallel dual-filter-housing structure with 3-way valve switching, allows filter element cleaning and replacement without production shutdown. Built with full food-grade stainless steel construction and quick-opening lid design, delivering reliable filtration performance for beverage, wine and food processing lines.
-
Dual parallel filter housings with 3-way valve switching for non-stop production
-
Full food-grade 304/316L stainless steel construction with sanitary finish
-
Quick-opening lid design for fast filter element replacement and cleaning
-
Flexible filtration precision options: 40-300 mesh customizable
-
Tripod support structure with stable installation and small footprint
Product Overview

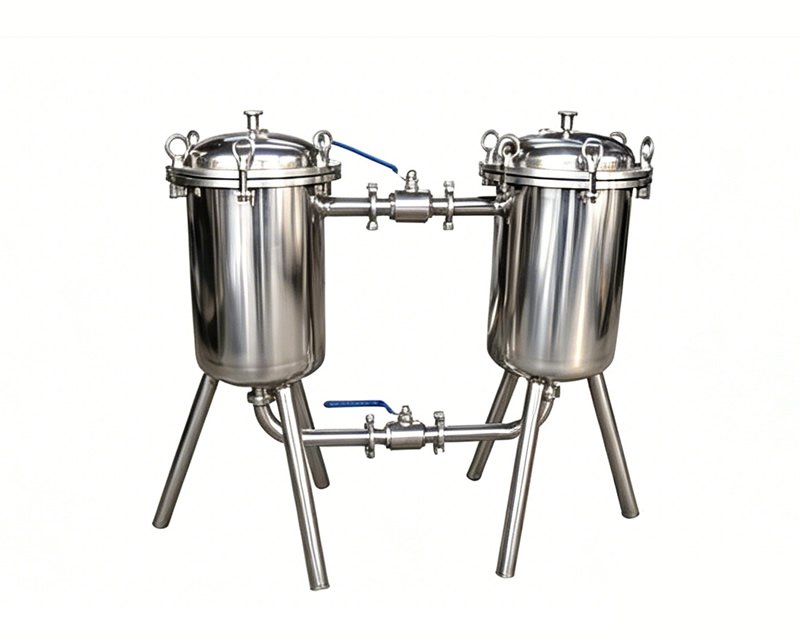

The ZOOLINKED sanitary duplex basket filter consists of two identical stainless steel filter housings connected in parallel, equipped with 3-way switching valves on both inlet and outlet sides. During operation, one filter housing is in working state while the other serves as a standby unit. When the filter element gets clogged and needs cleaning or replacement, the operator simply switches the valve to divert flow to the standby housing so production continues without interruption.
The whole machine adopts food-grade stainless steel material with smooth internal and external surfaces. The quick-opening lid with lifting ring design enables fast opening and closing, greatly simplifying filter element replacement and internal cleaning. It can be equipped with filter baskets, filter bags or filter screens of different precision to meet various process requirements.
Equipment Features
- Uninterrupted Continuous Production: Dual parallel filter housings with three-way valve switching design. When one filter unit needs maintenance, flow can be switched to the other unit immediately without shutting down the production line.
- Food-Grade Sanitary Construction: All wetted parts are made of high-quality 304/316L food-grade stainless steel, with polished smooth surface and no sanitary dead corners.
- Simple & Fast Switching Operation: Equipped with manual three-way ball valves for inlet and outlet switching, straightforward and reliable operation.
- Flexible Filtration Precision Options: Can be matched with filter baskets, mesh screens or filter bags of different precision grades from 40-300 mesh.
- Compact & Stable Structure: Tripod support structure with stable placement and compact floor space, easy to install in production workshops.
Technical Specifications
- Available Models: SL-80 (3-5 t/h), SL-100 (5-8 t/h), SL-150 (10-15 t/h), SL-200 (15-25 t/h)
- Housing Material: 304 / 316L food-grade stainless steel
- Maximum Working Pressure: ≤ 0.4 MPa
- Maximum Working Temperature: ≤ 100°C
- Filtration Precision: 40 – 300 mesh (customizable)
- Seal Material: Food-grade silicone
Application Fields
- Beverage industry: Fruit juice, tea beverages, plant protein drinks, syrup filtration
- Wine & alcohol industry: Rice wine, fruit wine, beer and other alcoholic products filtration
- Condiment industry: Soy sauce, vinegar, honey, syrup and various condiment purification
- Edible oil industry: Vegetable oil, peanut oil, sesame oil and other edible oils filtration
- Dairy industry: Milk, yogurt drinks and other dairy products impurity removal
