Mobile sanitary duplex microporous membrane filter on a 304/316L stainless steel cart with a pneumatic diaphragm pump and non-stop switching between two housings. Handles 0.22–50μm sterilising and clarification filtration at 1–5 m³/h for pharma, beverage, wine and small-batch multi-variety production.
R&D labs, pilot plants and multi-product workshops rarely want a filter bolted to one spot. This mobile duplex microporous filter rides on a stainless steel cart and switches between two housings on the fly, so sterile-grade filtration follows the work from station to station without stopping the line.
Overview

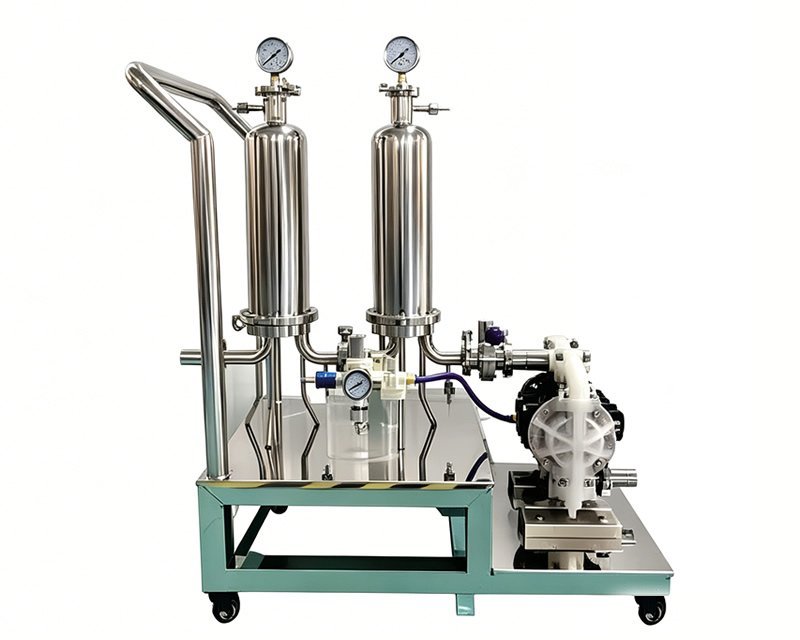

Everything sits on a caster-mounted stainless steel cart with a push handle: a pneumatic diaphragm pump for conveying, two parallel sanitary filter housings, and a full set of piping, valves and pressure gauges. No fixed installation is needed – just wheel it where it is required.
All contact parts are 304/316L food-grade stainless steel with sanitary clamp fittings, meeting food and pharmaceutical hygiene rules. Fit PP, PES, nylon or other microporous cartridges from 0.22μm to 50μm to move from fine clarification up to sterilising-grade filtration.
The duplex layout keeps one housing running while the other waits on standby. When the active element clogs, operators divert flow to the standby housing at once – production never pauses for a filter change.
Key Features
- Mobile all-in-one cart – universal casters and a push handle let it roam between workshops and stations, perfect for small-batch, multi-variety production.
- Non-stop duplex switching – two parallel housings and three-way valves let flow divert to the standby unit instantly, so elements are changed without halting output.
- Sanitary precision filtration – food-grade stainless surfaces and interchangeable microporous cartridges strip fine particles, solids, bacteria and microbes for sterile-grade results.
- Air-driven diaphragm pump – a food-grade pneumatic pump needs no on-site electricity, removes shock hazards and gently conveys sensitive materials with air-adjustable flow.
- Live pressure monitoring – inlet and outlet gauges show the differential at a glance so clogging is caught and elements are swapped in good time.
- Fast, hygienic service – quick-open clamp housings make element changes, cleaning and sterilisation quick and compliant.
How It Works
The pneumatic diaphragm pump draws feed into the system and sends it through a three-way valve into one of the two filter housings.
Inside, material flows through the microporous cartridge from outside to inside under pressure. Fine particles, solids, bacteria and microbes are held on and within the element, while clarified, sterilised filtrate exits the outlet.
When solids raise the differential pressure, the operator turns the switching valve to route flow to the standby housing. Production continues while the clogged housing is opened for element replacement, cleaning and maintenance.
Technical Parameters
Data is for reference only. Specifications can be customized to your production requirements.
Applications
- Pharma & biotech: sterilising filtration of liquids, injections, biologics and plant extracts.
- Beverages: precision clarification and sterilisation of juice, tea drinks, plant-protein drinks and syrup.
- Wine & spirits: fine filtration of baijiu, fruit wine, rice wine and beer to remove microbes.
- Condiments: polishing soy sauce, vinegar, syrup and liquid seasonings for clarity.
- Small-batch & trials: ideal for R&D, pilot lines and flexible multi-variety production.
Zhonglian Machinery integrates this unit into complete turnkey lines for beverage, juice, dairy and bottled water plants across Central Asia, Africa, Southeast Asia and South America. Talk to our engineers about matching it to your packaged drinking water production line and downstream filling equipment.
